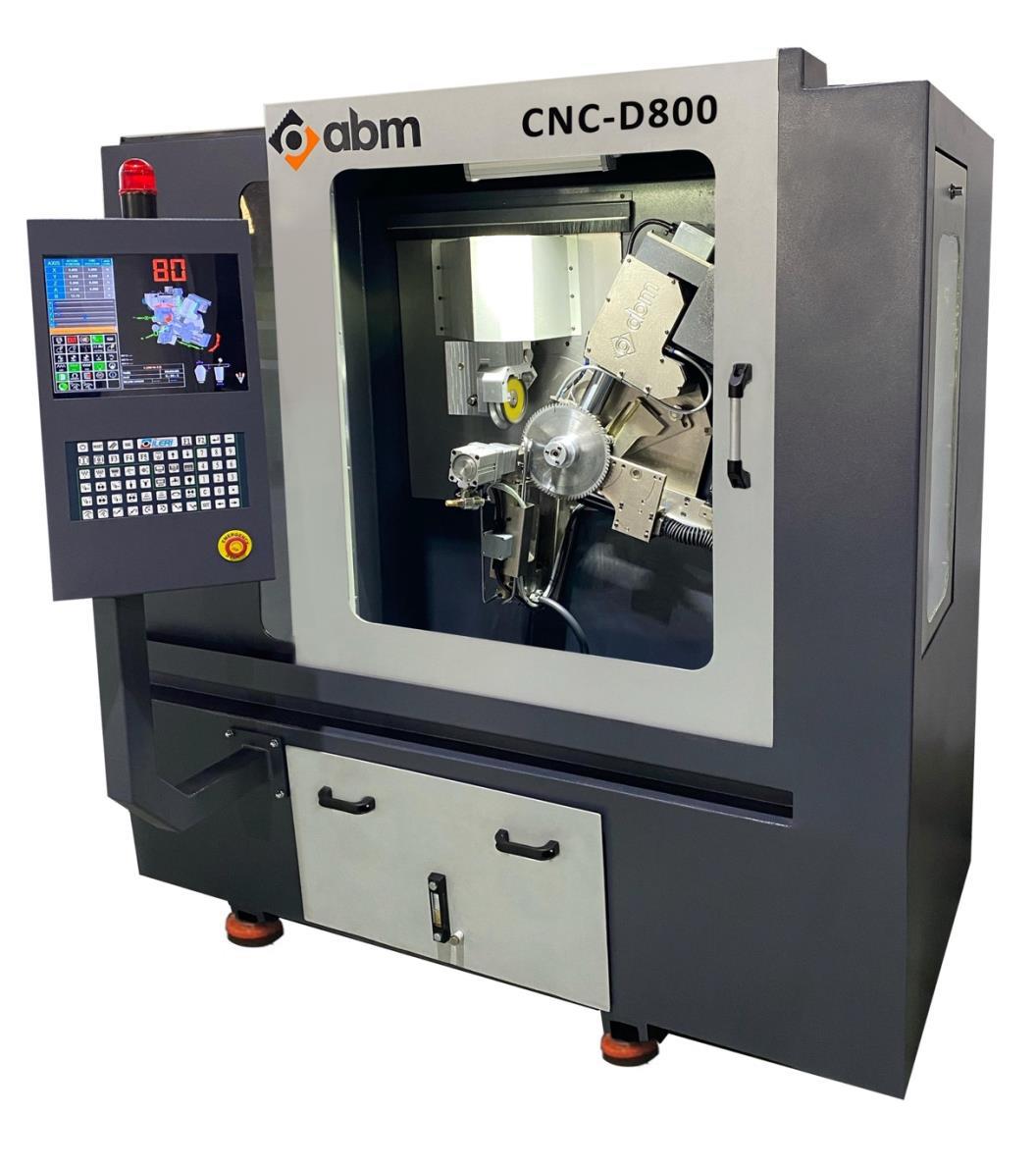

ABM CNC-D800 - Top & Face Grinding in 1 Operation
Fully automatic top and face grinding machine in one operation with 7 CNC axes for TCT saw blades with 6"–32" diameter
Description / Informational PDF
The ABM CNC-D800 is a fully automatic 7-axis CNC grinding machine designed to sharpen the top and face of carbide-tipped circular saw blades in a single operation. Built for high-production environments, it grinds blades from 150 mm to 800 mm (6"–32") and accommodates virtually all standard tooth geometries with exceptional precision and repeatability. Intelligent CNC automation, broken tooth detection, and variable pitch indexing minimize setup time while maximizing productivity. Combined with an intuitive operator interface, free programming, remote diagnostics, and a robust enclosed design, the CNC-D800 delivers fast, accurate sharpening for both saw blade manufacturers and professional service centers.
Highlights
Top & face grinding in one operation for maximum productivity
7 fully CNC-controlled axes deliver exceptional precision and repeatability
Sharpens carbide-tipped circular saw blades from Ø150–800 mm (6–32")
Supports virtually all standard carbide tooth geometries in a single grinding cycle
Automatic broken tooth detection and intelligent variable pitch indexing
Free programming with unlimited program memory and an intuitive operator interface
Options / Accessories
Hollow Face Grinding Attachment
Mist extraction system
Central oil filtration system
Infinity Touch Panel (digital touchscreen)
Pneumatic Step In/Out System (for saw blade production)
Extended tooth pitch indexing (up to 160 mm / 6.3")
Special clamping jaws with CNC software for multi-rip (strobe) saw blades
Spline saw attachment
