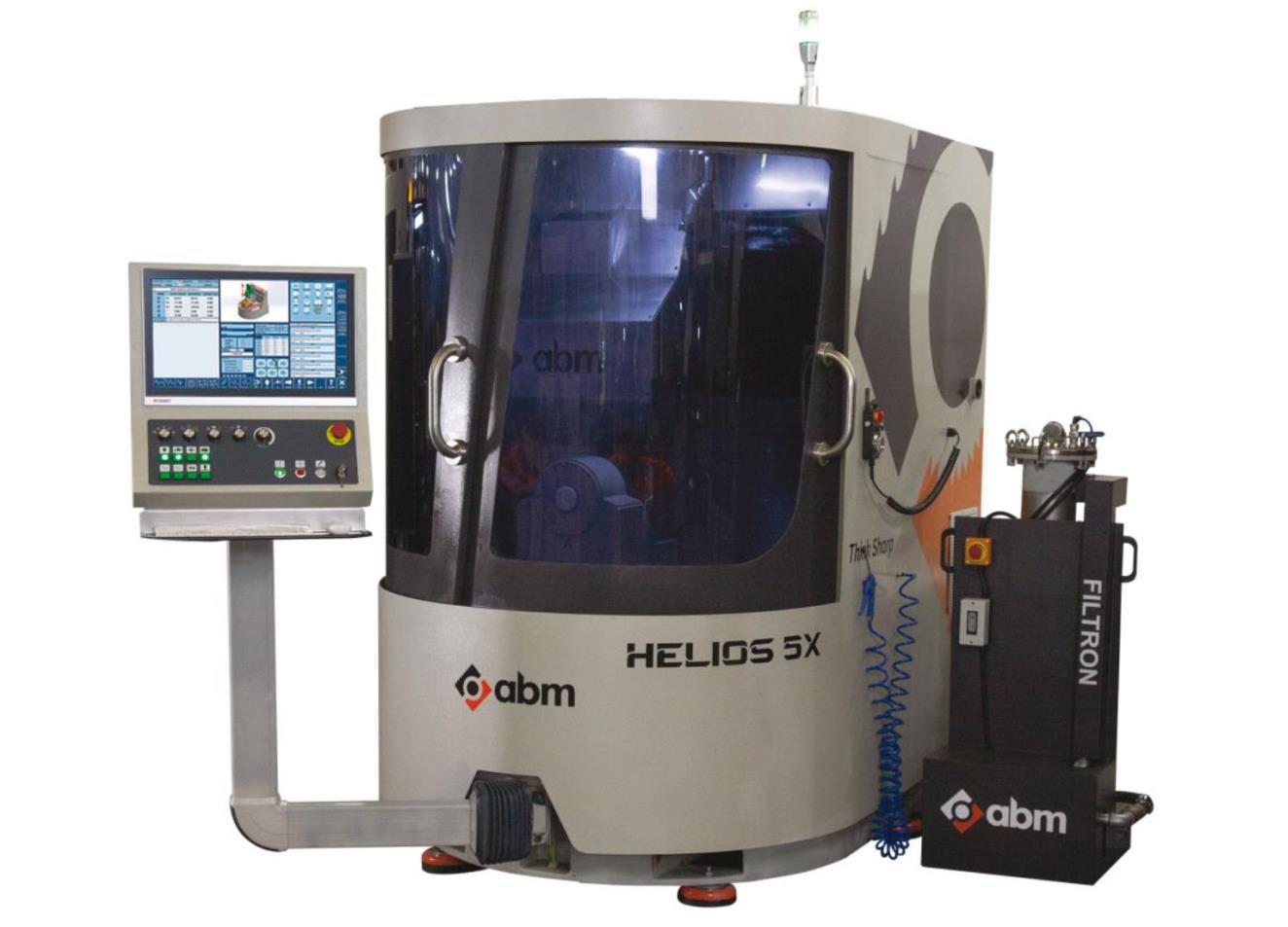

ABM HELIOS-5X - 5-Axis CNC Tool Grinding
5-axis CNC tool grinder for production and re-sharpening of end mills, drills, profile tools, burrs, routers, reamers and other specialized cutting tools
Description / Informational PDF
The ABM HELIOS-5X is a 5-axis CNC tool grinder designed for the precision production and regrinding of cutting tools from Ø3–20 mm (Ø0.12"–0.79"). Engineered for accuracy, productivity, and flexible operation, the HELIOS-5X delivers its highest performance when processing tools up to Ø20 mm. The machine features two separate grinding spindles, BECKHOFF absolute motors, an electronic probe for automatic tool detection and positioning, and a 21.5" touchscreen with industrial PC. The standard Basic Tool Studio software includes programming for end mills, while optional software packages expand capabilities for drills, profile tools, burrs, routers, reamers, and other specialized cutting tools. An ergonomic, oil-tight enclosure provides convenient access to the working area and supports efficient day-to-day operation.
Highlights
5-axis CNC grinding for precision cutting tool production and re-sharpening
Processes cutting tools from Ø3–20 mm (Ø0.12"–0.79")
Two separate grinding spindles for flexible grinding wheel positioning
Electronic measuring probe for automatic tool detection and positioning
21.5" touchscreen with industrial PC, adjustable control panel, and handwheel
Basic Tool Studio software with standard programming for end mills
Expandable software platform for drills, profile tools, burrs, routers, reamers, and other specialized cutting tools
Options / Accessories
Additional software packages for drills, profile tools, multicutter applications, and 3D simulation
Profile cutter / moulder system
Grinding wheels, HSK holders, and collets
FILTRON oil filtration system
Oil chiller system
Mist extraction system
Fire detection camera and video recording system
