ABM SPARQ - PCD Tool Erosion
5-axis CNC erosion machine for precision production and servicing of PCD cutting tools up to 400 mm (15.75") in diameter
Description / Informational PDF

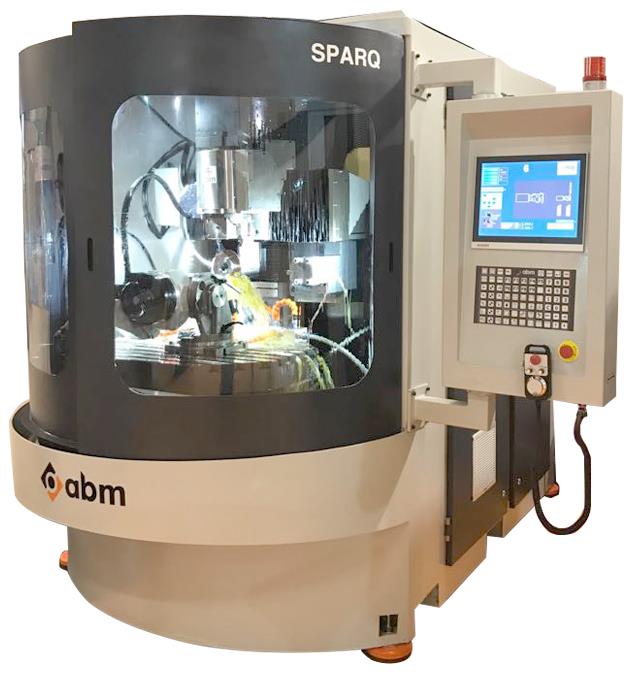

The ABM SPARQ is a 5-axis CNC erosion machine designed for the precision production and servicing of PCD cutting tools up to 400 mm (15.75") in diameter with a maximum erosion length of 150 mm (5.91"). Designed for circular saws, hoggers, helical cutters, router bits, profile knives, and moulders, the SPARQ provides accurate and repeatable erosion across complex tool geometries. Its integrated measuring system allows the erosion process to be completed in a single setup, while ABM’s digital erosion generator, absolute servo control, and rigid composite monoblock body provide excellent precision and surface quality. Flexible programming and dedicated interfaces for tool production and servicing make the SPARQ a versatile solution for demanding PCD tooling applications.
Highlights
5-axis absolute servo CNC control with direct spindle system
400 mm (15.75") maximum tool diameter
150 mm (5.91") maximum erosion length
Integrated Renishaw measuring system for precise tool measurement
ABM digital erosion generator for high-speed PCD erosion
Composite monoblock machine body for high rigidity and reduced vibration
HSK-A63 motor-controlled dividing head
Options / Accessories
PCD erosion wheels – cup and disc configurations
FILTRON oil filtration system
Oil chiller
Mist extraction system
Fire detection camera with optional 4TB video recording
HSK-A63 collets – 20–40 mm (0.79–1.57") connection shafts
ABM DrawWorks CAD-CAM software for profile tools
Measuring probe stylus
