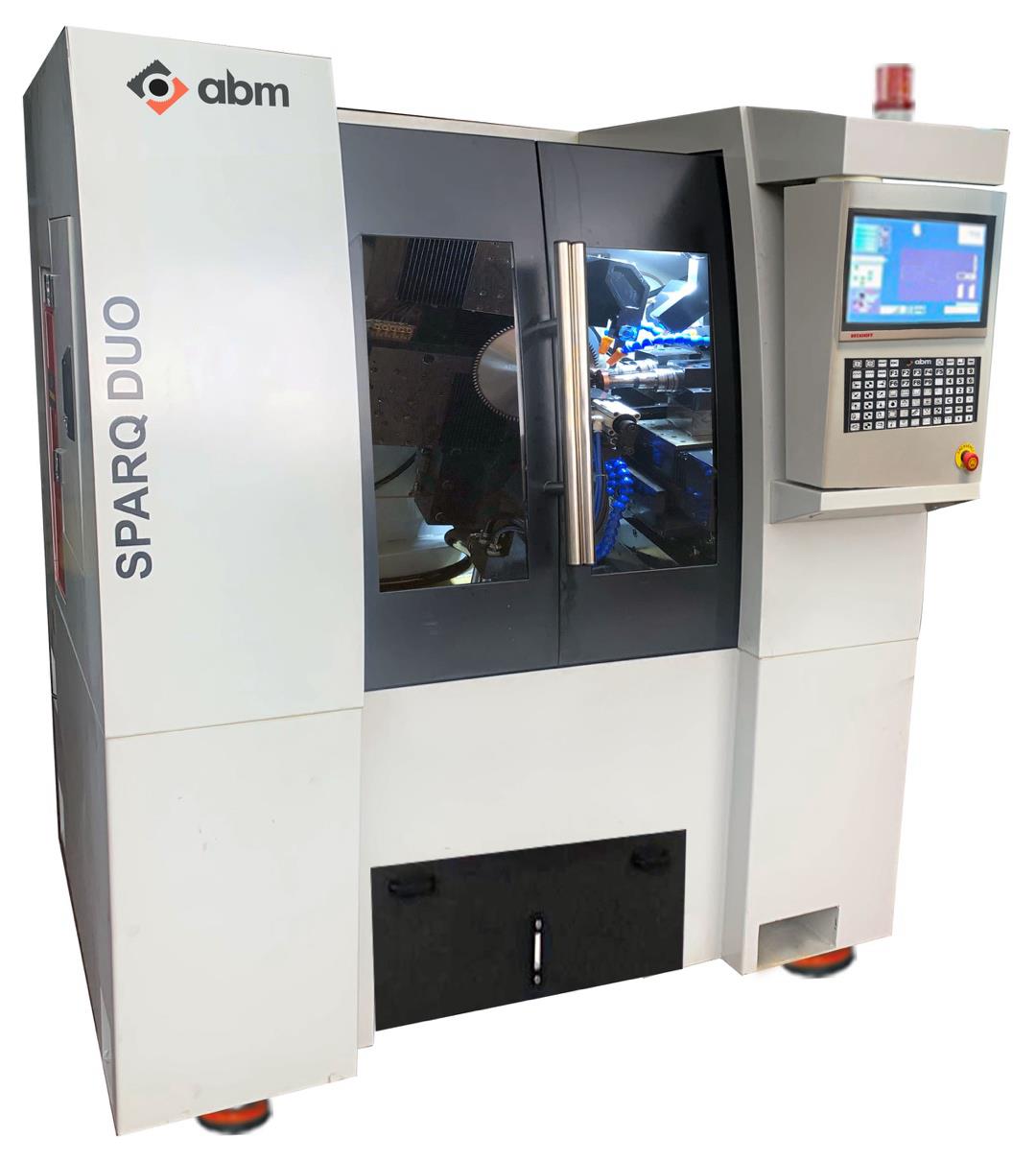

ABM SPARQ-DUO - PCD Circular Saw Dual-Side Erosion
8-axis CNC dual-side erosion machine for precision production and servicing of PCD-tipped circular saw blades up to 800 mm (32") in diameter
Description / Informational PDF
The ABM SPARQ-DUO is an 8-axis CNC dual-side erosion machine designed for the precision production and servicing of PCD-tipped circular saw blades from 150–800 mm (6–32") in diameter. Its dual-side design allows the erosion process to be completed in a single setup, providing accurate and repeatable results while improving production efficiency. The SPARQ-DUO features intelligent tooth indexing for group and variable-pitch blades, along with dedicated programs for saw blade production and newly replaced teeth. ABM’s erosion generator and rigid monoblock machine body support precise erosion and excellent surface quality, while flexible programming accommodates a wide range of PCD circular saw blade geometries for the wood and metalworking industries.
Highlights
Fully automatic 8-axis CNC dual-side PCD erosion
150–800 mm (6–32") circular saw blade capacity
10 mm (0.39") maximum blade thickness
Intelligent indexing for group tooth and variable-pitch saw blades
Automatic tooth pitch calculation with manual input capability
Dedicated programs for saw blade production and newly replaced teeth
ABM-developed erosion generator for precise PCD processing
Options / Accessories
PCD side erosion wheels
FILTRON oil filtration system
Oil chiller
Mist extraction system
Fire detection camera with optional 4TB video recording
Leveling and vibration-damping pads
Multitap transformer for U.S. voltage
Extended tooth pitch indexing up to 160 mm (6.30")
