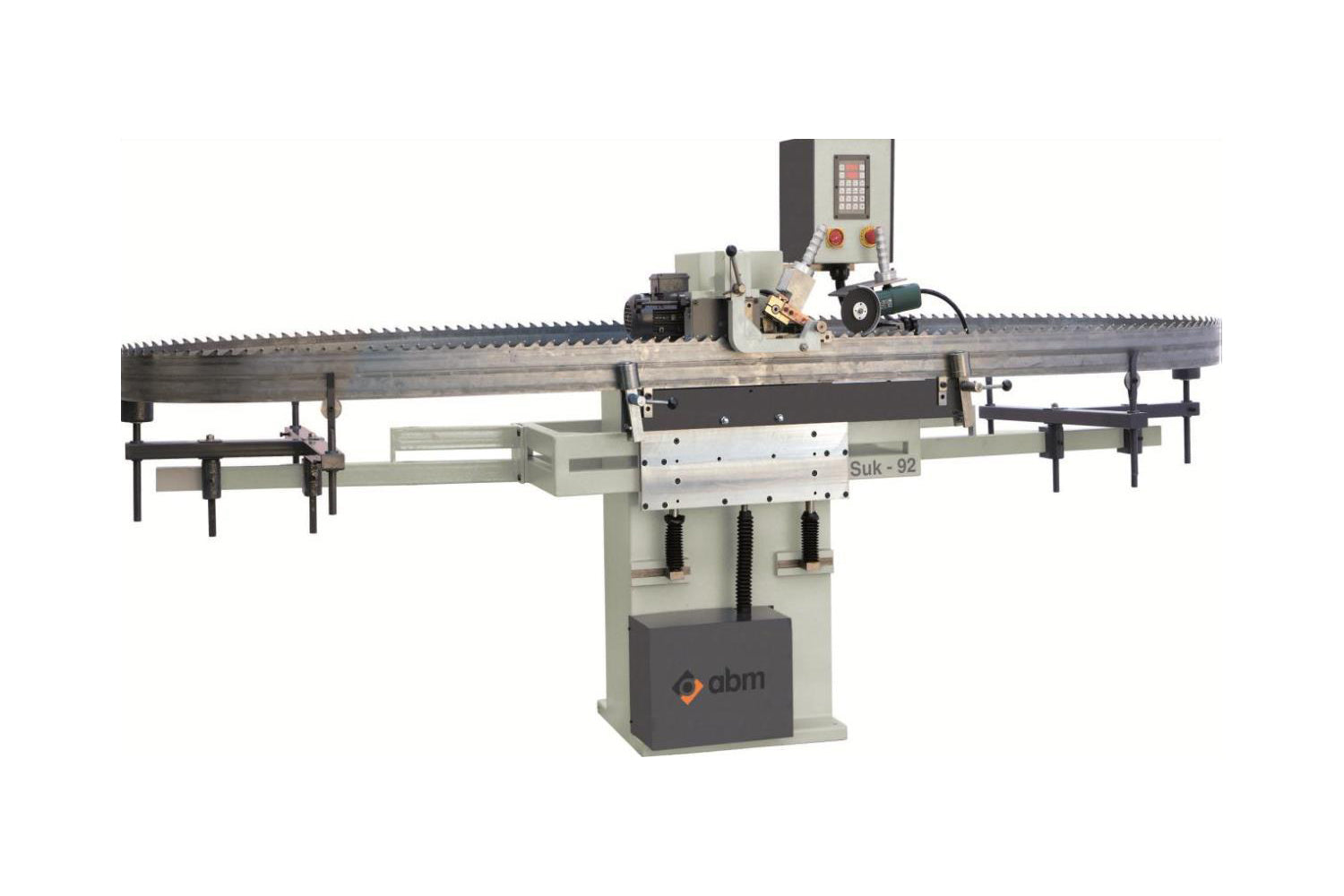

ABM SUK-92 - Manual Band Saw Stellite Tipping
Manual band saw stellite tipping machine with automatic annealing from 60–250 mm (2.36"–9.84") wide
Description / Informational PDF
The ABM SUK-92 is designed for precise stellite tipping of band saw blades, combining manual welding with automatic annealing on a single machine. Welding and annealing temperatures are adjustable from the control panel, while an integrated motor-driven cutting system cuts the welded stellite rod. The process produces durable tooth tips for longer blade life, improved cutting performance, and better surface quality. The SUK-92 accommodates band saw blades from 60–250 mm (2.36"–9.84") wide, with an optional extension for blades up to 300 mm (11.8"). It supports Ø4 mm, Ø5 mm, and Ø6 mm stellite rod and has a production capacity of approximately 6–8 band saws per day. Optional attachments are also available for frame saw and circular saw tipping.
Highlights
Manual stellite tipping with automatic annealing
Stellite tipping and annealing performed on the same machine
60–250 mm (2.36"–9.84") band saw width capacity (optional: 300mm)
Production capacity of approximately 6–8 band saws per day
Adjustable welding and annealing temperatures
Motor-driven stellite rod cutting system
Options / Accessories
Frame Saw & Circular Saw Tipping Attachments
300mm (11.8") Band Saw Capacity Extension
Stellite Cutting Wheel – Ø115 × 1.0 × Ø22 mm
