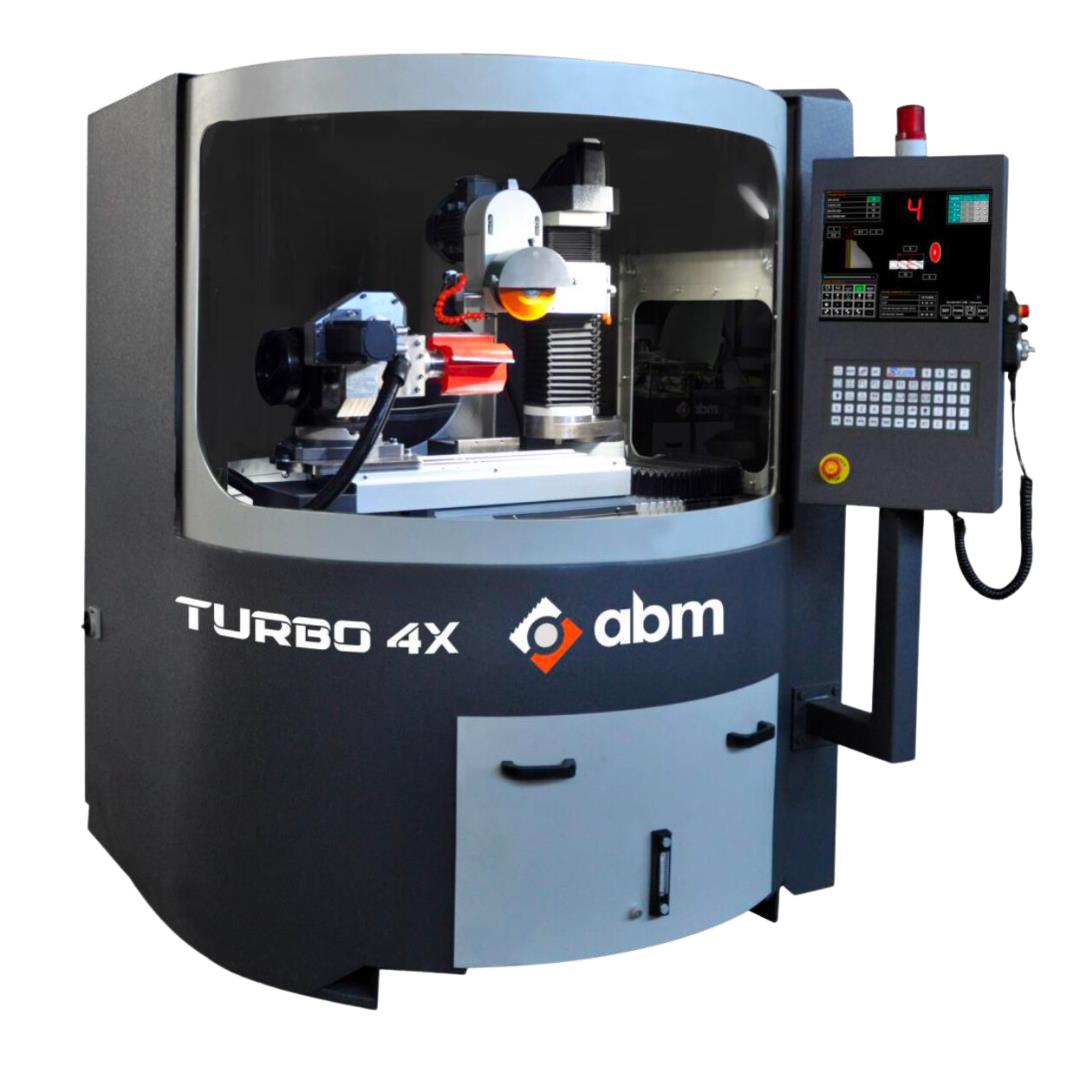

ABM TURBO 4X - 4-Axis CNC Tool Grinding
4-axis CNC tool grinder for re-sharpening of cutters, hobs, end mills, router bits, finger jointing knives, planing heads and profiled moulders
Description / Informational PDF
The ABM TURBO 4X is a 4-axis CNC tool grinder designed for the precision regrinding of cutters, hobs, end mills, router bits, finger jointing knives, planing heads, and profiled moulders. Its CNC-controlled design provides accurate, repeatable grinding for a wide range of cutting tool applications. The TURBO 4X features a PC-based Windows control system with a 17" LCD screen, CNC linear bearing system, 360° rotatable dividing head, and up to 260 mm (10.24") grinding length. A hand wheel allows accurate positioning of selected axes, while central lubrication and an oil coolant system support reliable day-to-day operation. A variety of optional accessories, including probing, filtration, mist extraction, and tooling systems, are available to further expand the machine's capabilities and productivity.
Highlights
Automatic 4-axis CNC tool grinding
260 mm (10.24") maximum grinding length
360° rotatable dividing head
PC-controlled Windows operating system
17" LCD control screen
CNC linear bearing system for enhanced grinding quality and machine life
Hand wheel for accurate positioning of selected axes
Options / Accessories
Renishaw Probing System – for defining the position of each cutting tooth
HSK-A63 Tool Clamp Upgrade
Mist extraction system
Oil Filtration Unit
Coolant Unit for oil filtration system
Fire Suppression System
CBN Grinding Wheel – Ø150 mm (5.91")
