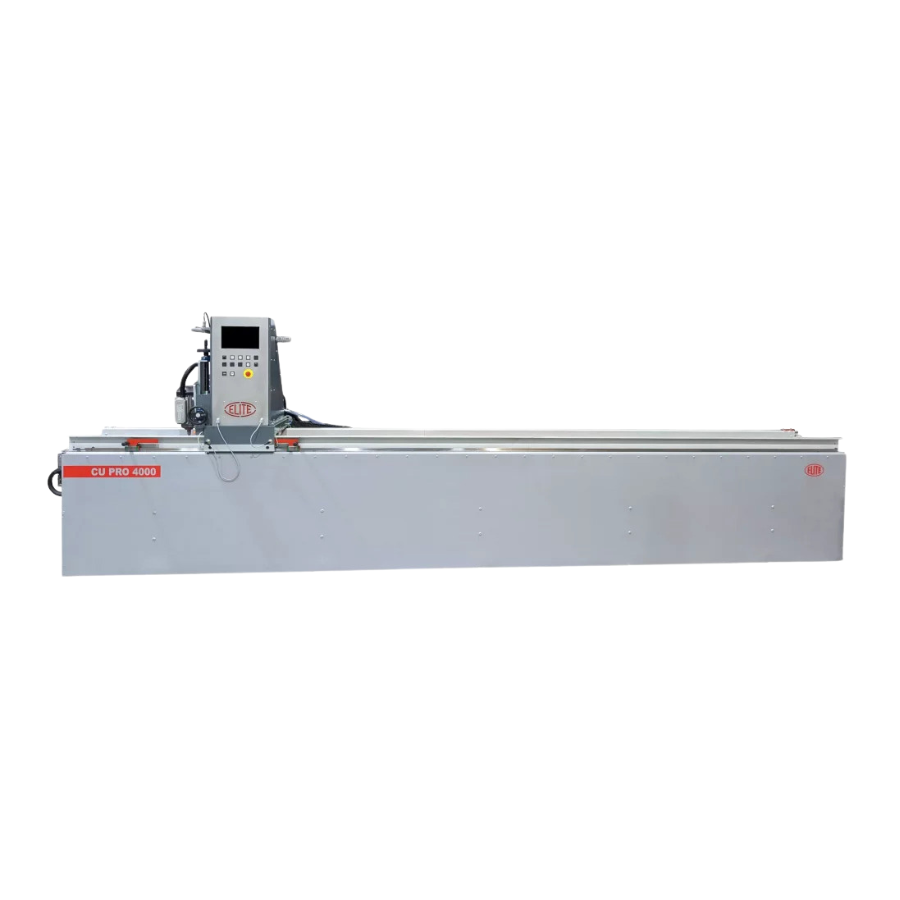

Elite CU PRO (1000-6000) - Straight Knife Grinding up to 40”-242”
Precision straight knife grinding machine for knives ranging up to 40” through 242” in length
Description / Informational PDF
The Elite CU PRO 1000 to 6000 series offers precision straight knife grinding for blades ranging from up to 40" (1030mm) through an impressive 242" (6150mm) in length. Built for durability and high performance, these machines feature an 18 HP grinding motor, selectable wheel rotation, and a robust magnetic chuck adjustable from 0° to 90°. Designed with ease of use in mind, the Elite CU PRO series is equipped with a 10” color touchscreen for intuitive CNC programming, automatic wheel down-feed with micron-level precision, and a vibration-free carriage movement system. An external coolant system, automatic lubrication, and ball bearing linear guides ensure long-term reliability, high-quality finishes, and minimal maintenance. Perfect for both production blade manufacturing and sharpening, the CU PRO series is engineered to deliver consistent, high-precision results every time.
Highlights
Powerful, vibration-free grinding for fast, accurate work
High-precision Z-axis control with .001mm resolution ball screw
Intuitive 10” color touchscreen for customizable sharpening cycles
Direct drive motor for up to 20% more power
Smooth, vibration-free carriage movement with toothed belt drive
Programmable grinding wheel direction (edge or against-edge)
Uniform clamping with electro-permanent magnetic chuck
Built-in production programming with automatic wheel wear compensation
Options / Accessories
Elite CU PRO 7000 (up to 282” length knives) can be made by request
Additional grinding head 5 hp - with or without CNC axes
Automatic magnetic separator
Automatic grinding wheel measurement and compensation system
Grinding wheel motor horsepower increase
Frequency drive
Ladder for the sharpening of planer knives
Knife clamping holder
Cleaning system by means of second pump and cleaning gun
Front & rear edge reference bars
Machine-integrated FILTRAmaq UNO fine filtration system for cleaning the grinding oil/emulsion down to 2 micron
HMT CleanGrind Synthetic Coolant
