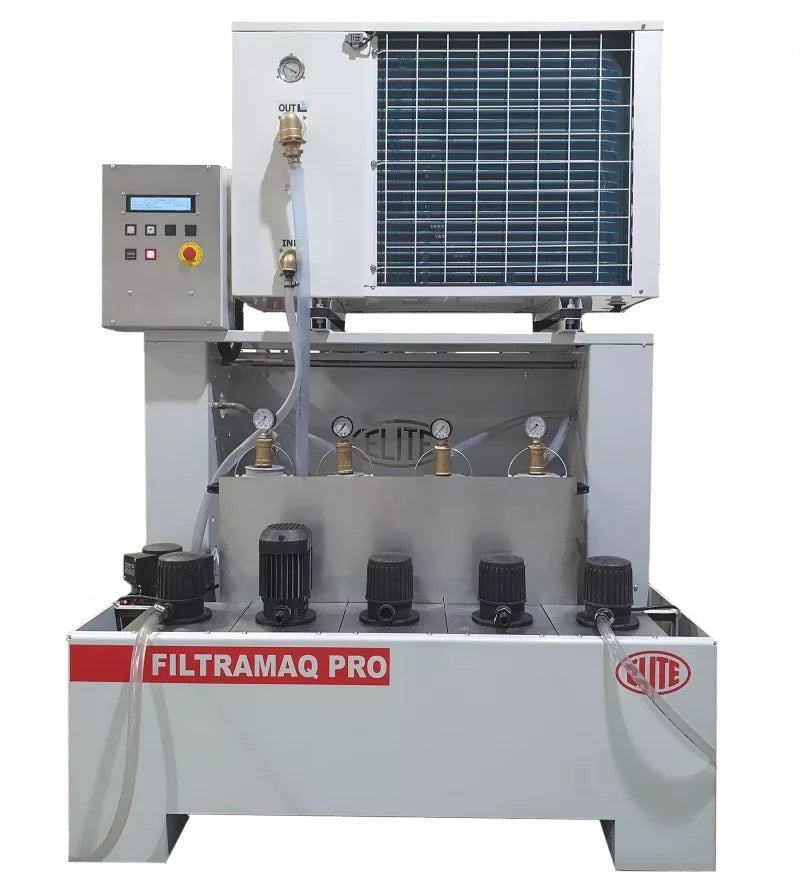

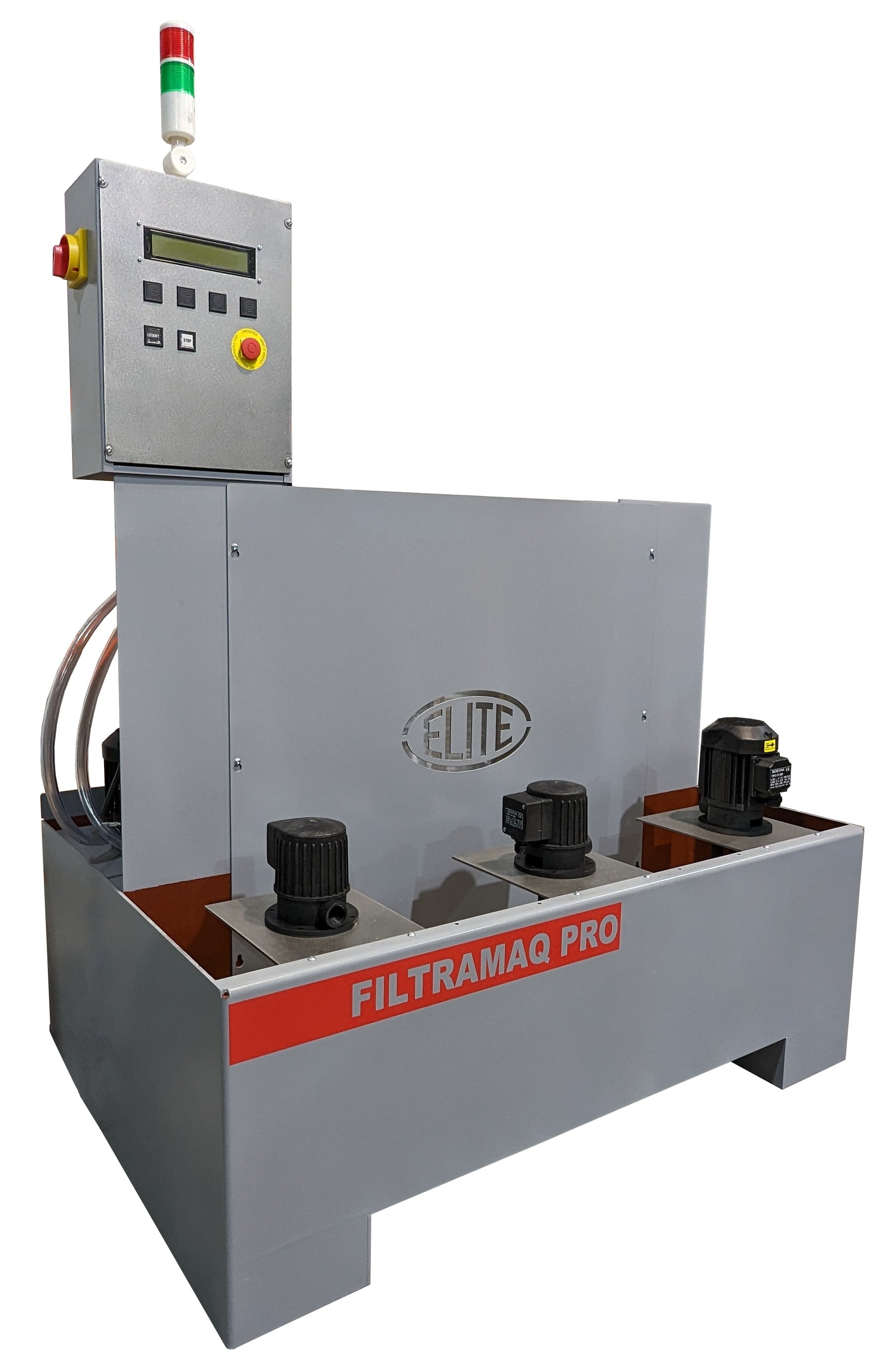

Elite FILTRAmaq PRO - Filtration for up to 4 Machines (chiller optional)
Centralized coolant filtration system for up to 4 machines
Description / Informational PDF
The Elite FILTRAmaq PRO is a high-performance, stand-alone centralized filtration system designed to support up to four sharpening and grinding machines. Engineered for use with both water-soluble synthetic blended coolants and grinding oils, it offers advanced two-micron filtration that extends coolant life and protects your equipment. The system utilizes a gravity-fed dirty coolant tank with a settling compartment, followed by filtration and clean coolant recirculation—seamlessly integrating with your existing machinery pumps. Its autonomous operation eliminates machine dependency issues common with traditional centralized systems, ensuring uninterrupted productivity even if one unit requires service. With a compact footprint, low maintenance costs, and optional coolant chilling for temperature control, the FILTRAmaq PRO enhances grinding precision, reduces spindle and guide wear, and significantly extends grinding wheel and machine life.
Highlights
Stand-alone centralized filtration system for up to four machines
Ultra-fine two-micron filtration significantly improves coolant quality and tool finish
Dirty coolant pre-cleaning with easy-to-clean stainless-coated neodymium magnets
High filtration flow rates available: 50, 100, 150, or 200 liters per minute
Gravity refrigerant return saves up to 50% energy—no booster pump needed
Reduces wear on machine guides, spindles, and bearings by eliminating carbide powder abrasion
Enhances grinding accuracy by minimizing thermal expansion during operation
Compact, space-saving design ideal for placement between machines
Options / Accessories
Additional filtration unit: adds 50 l/min of filtration capacity for each additional unit, up to a maximum of 200 l/min of total filtration flow rate capacity.
Chiller system to maintain the coolant temperature stable. Cooling capacity: 5kW
Filter cartridges
HMT CleanGrind Synthetic Coolant
