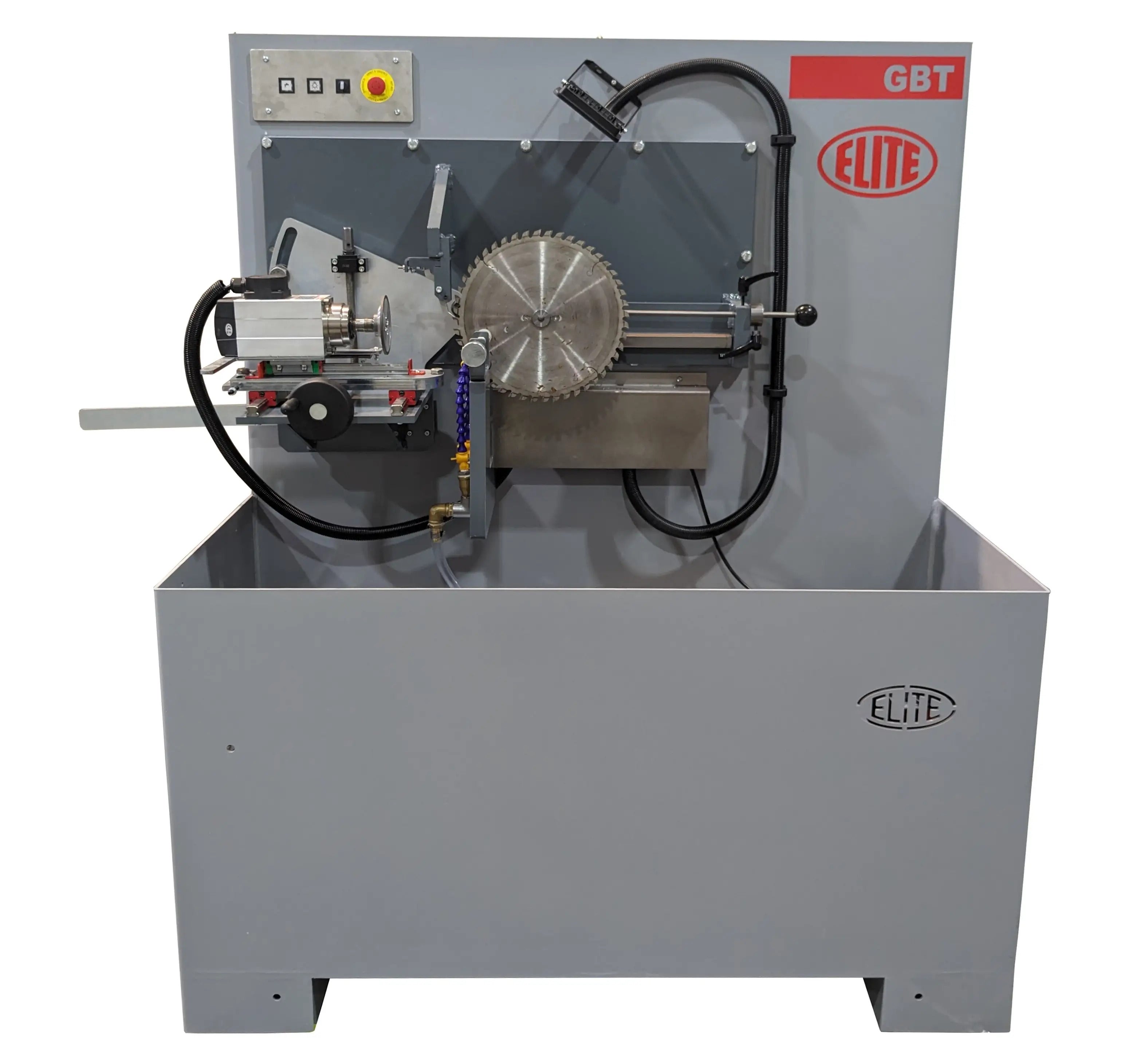

Elite GBT 750 - Manual Single Side Grinding
Manual single-side grinding machine for TCT saw blades with 100-850mm diameter
Description / Informational PDF
The Elite GBT 750 is a robust manual side grinding machine designed for precise repair and maintenance of carbide-tipped circular saw blades ranging from 100 mm to 850 mm in diameter. Built with simplicity and durability in mind, this machine uses a single grinding wheel to manually grind one side of the tooth at a time, ensuring accuracy and repeatability. The GBT 750 is ideal for shops working with scoring discs, portable saw blades, or standard circular blades, offering precise tooth flank grinding for new blade production or tip replacements. A direct-drive spindle operating at 9000 RPM, combined with a frequency converter, guarantees optimal sharpening results with minimal stone wear. Optional integrated cooling allows for wet grinding to improve surface quality and extend the life of both the saw blade and the grinding wheel.
Highlights
Wide diameter range: compatible with saw blades from 100 mm to 850 mm.
Durable, simple design: engineered for reliability and long-term use with minimal breakdowns.
Easy operation: manual controls with intuitive left/right wheel direction selection.
High-performance sharpening: direct spindle system running at 9000 RPM ensures premium sharpening quality.
Compact footprint: space-saving design with easy access for maintenance and servicing.
Versatile application: supports any tooth pitch and is prepared for integration with external or centralized filtration systems.
Options / Accessories
Machine-integrated cooling unit
Machine-integrated FILTRAmaq UNO fine filtration system for cleaning the grinding oil/emulsion down to 2 micron
HMT CleanGrind Synthetic Coolant
