Elite JVC DUO - Circular Knife Grinding w/ 3 CNC Axes
3-axis CNC precision circular knife grinding machine for knives 3.15” to 31.5” in diameter
Description / Informational PDF

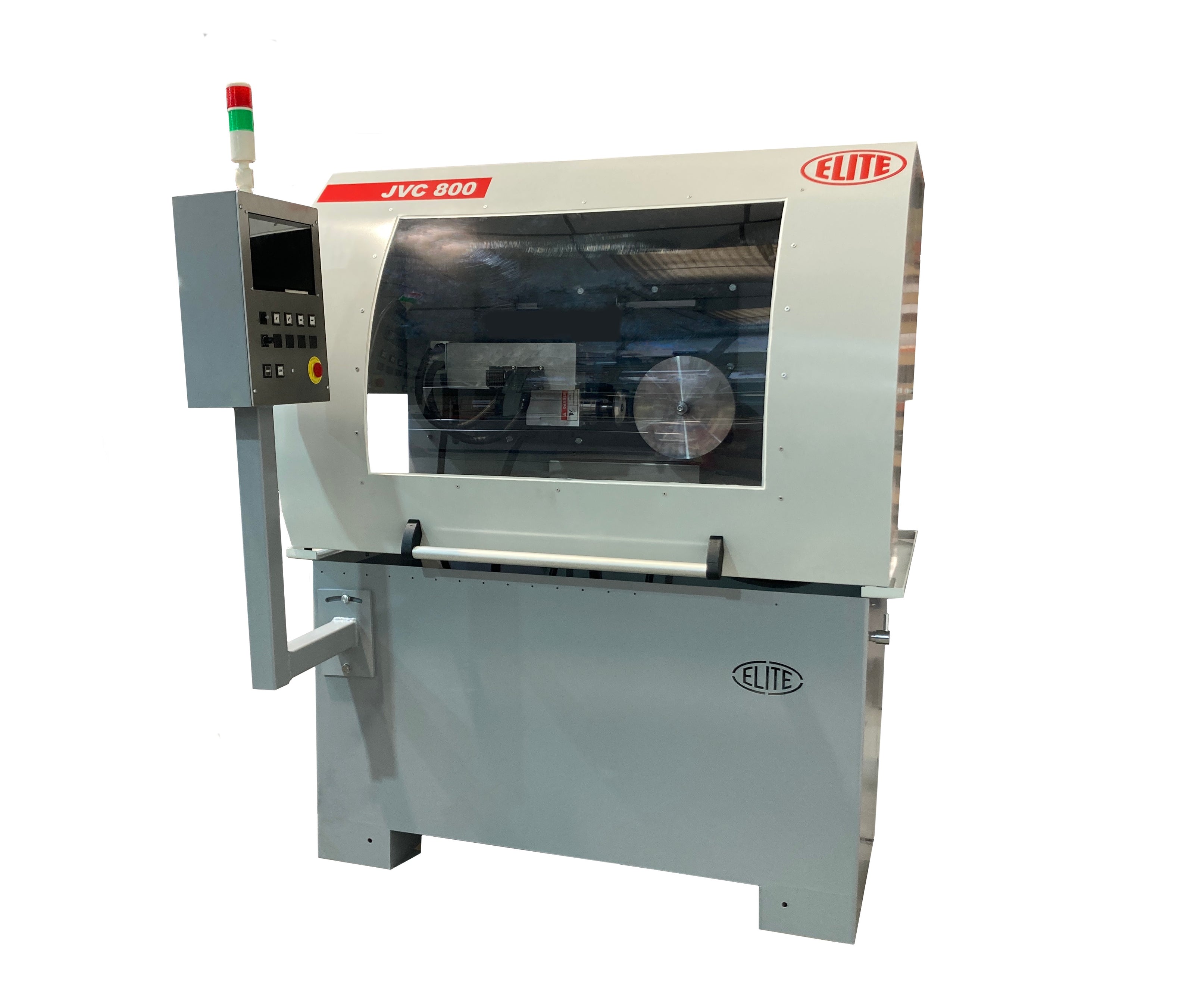

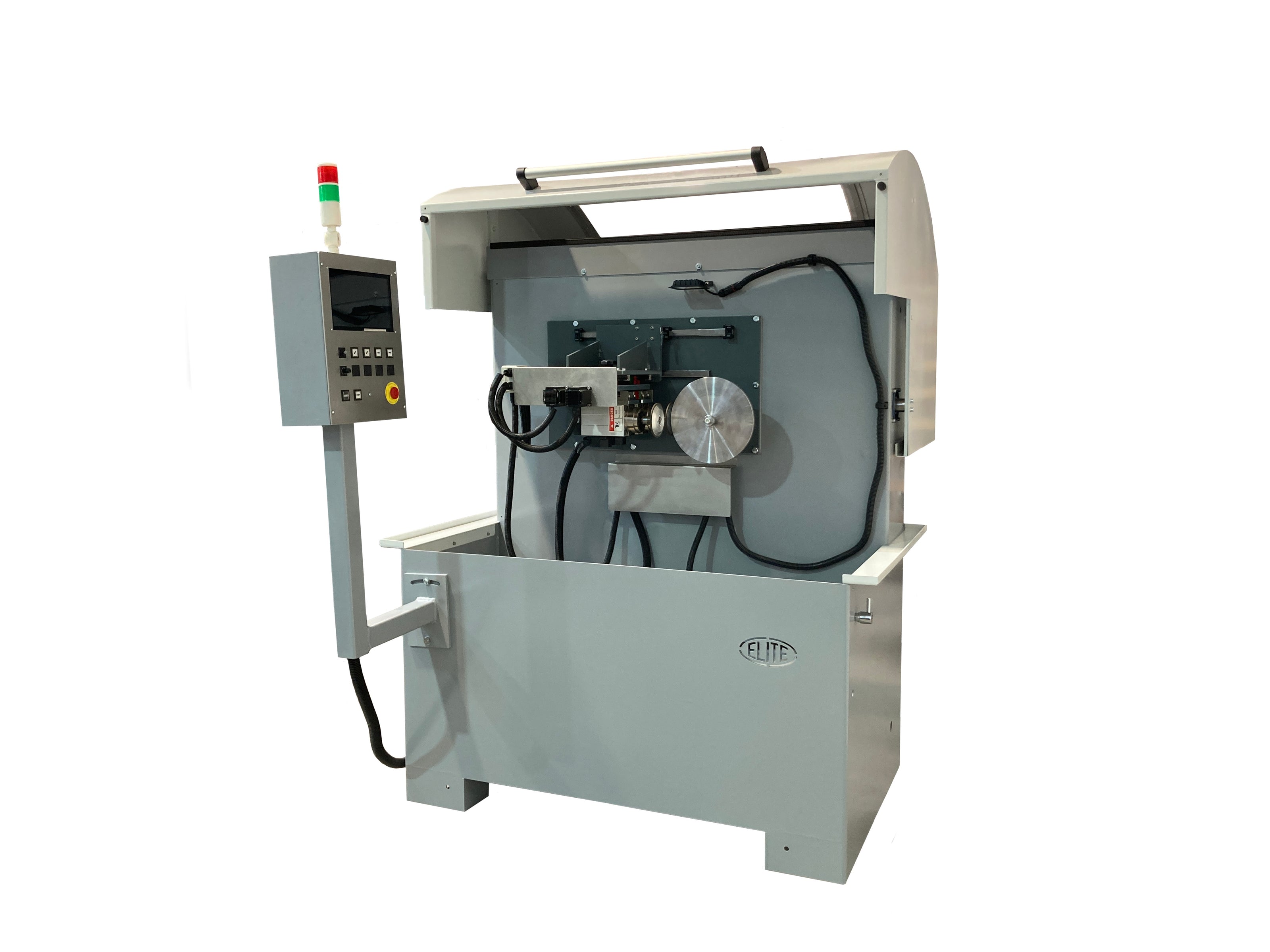

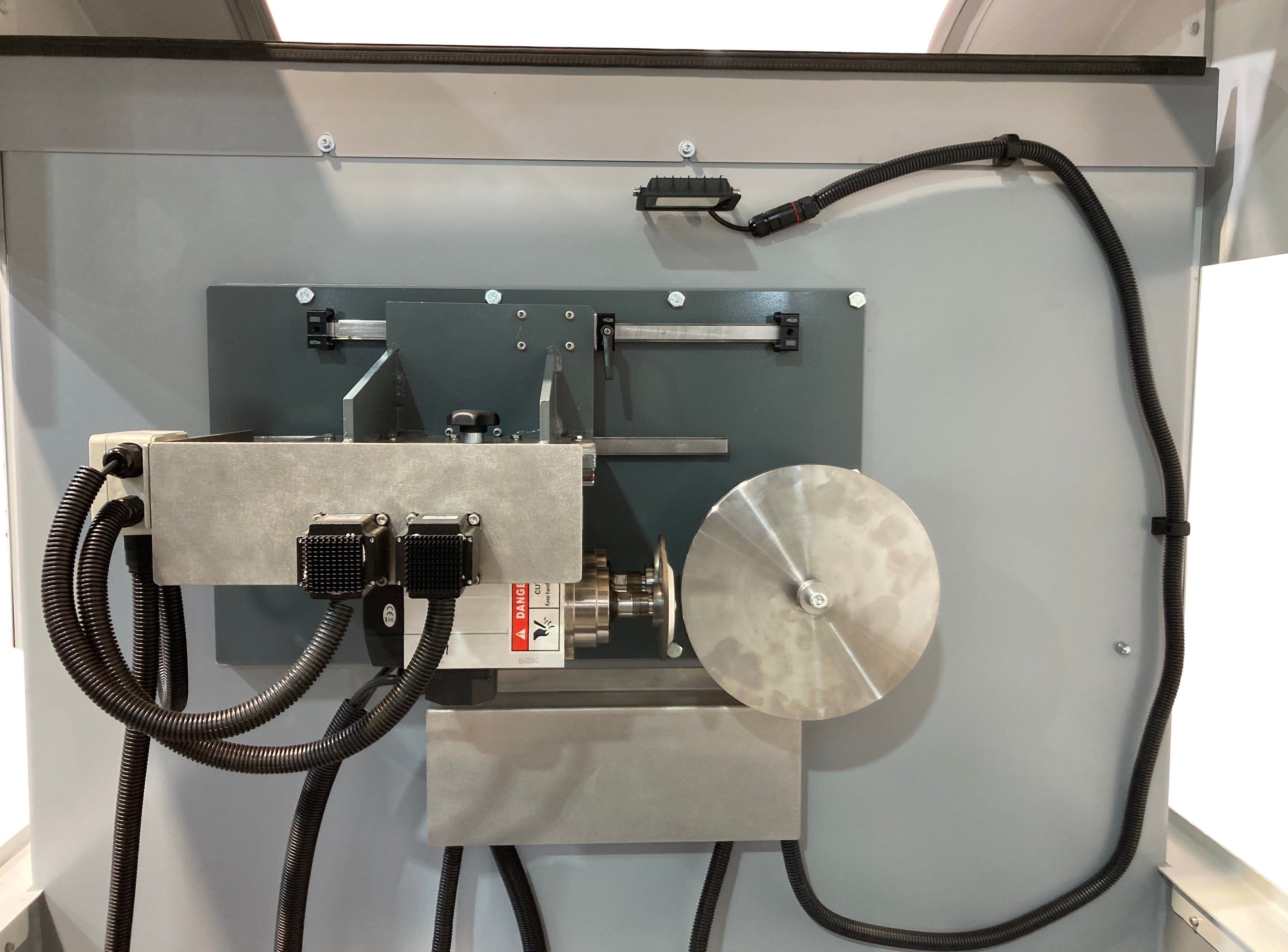

The Elite JVC DUO is a high-precision CNC circular knife grinding machine engineered for superior edge quality and efficient operation. Designed to accommodate knives from 80mm (3.15”) to 800mm (31.5”) in diameter, the JVC DUO offers unmatched flexibility for industries demanding premium finishes and consistent results. Featuring three fully CNC-controlled axes (X, Y1, Y2), it allows automatic grinding of one angle at a time with programmable roughing, finishing, and polishing cycles. With intuitive touch-screen programming and a full machine enclosure for operator safety, the JVC DUO delivers streamlined operation and outstanding precision for both small and large-scale grinding needs.
Highlights
Easy-to-use touchscreen control panel with on-screen instructions.
3-axis CNC control for automatic grinding of one angle at a time.
Programmable roughing, finishing, and polishing cycles.
Adjustable knife rotation speed for optimal results.

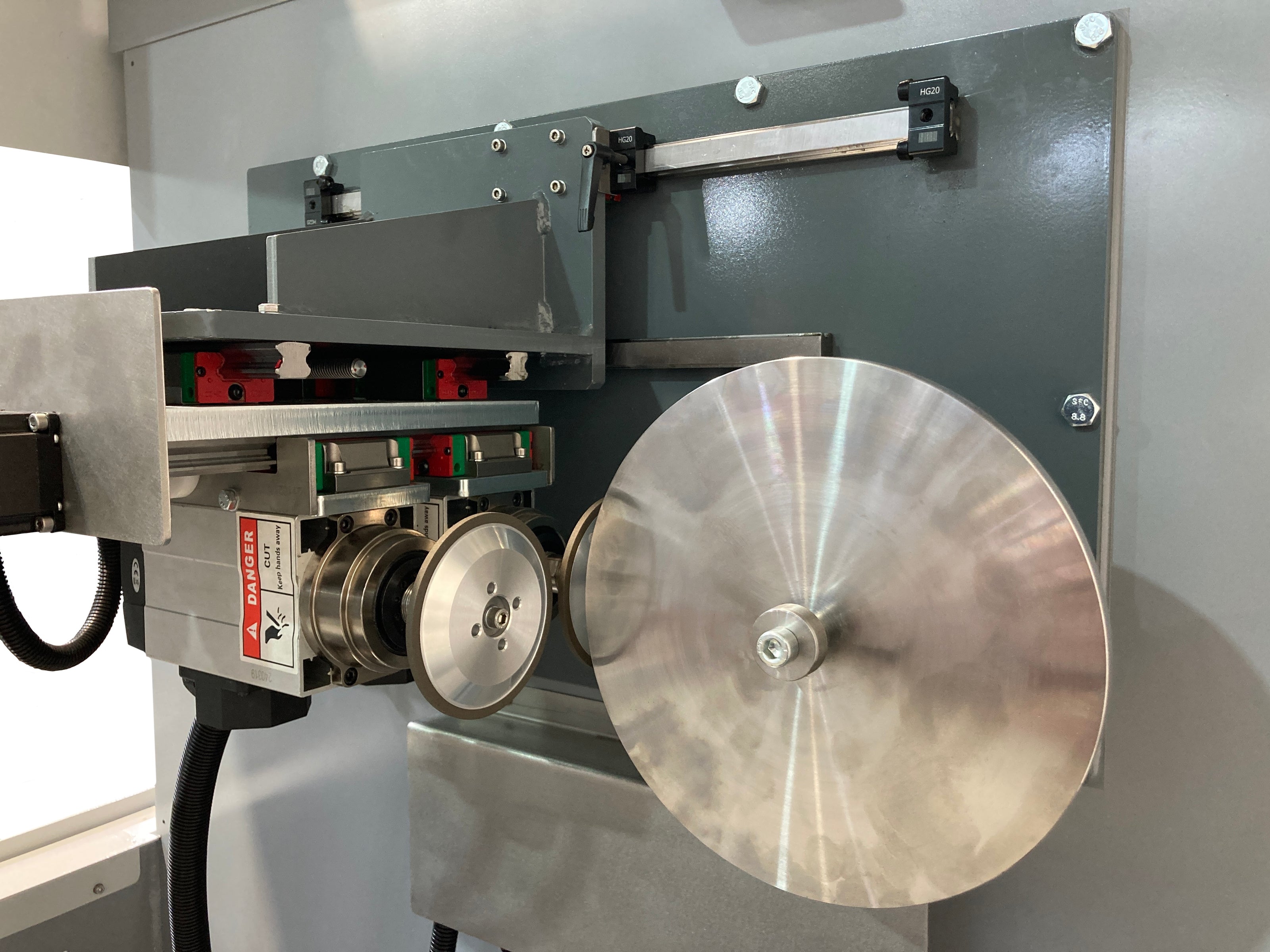

Dual 1 HP grinding motors and 9000 RPM grinding wheels for fast, precise grinding.
Full enclosure for safe, quiet operation.
Built-in coolant system with 58-gallon tank.
Options / Accessories
Resin, CBN, and Diamond grinding wheels of various sizes
System for sharpening progressive knives
Machine-integrated FILTRAmaq UNO fine filtration system for cleaning the grinding oil/emulsion down to 2 micron
HMT CleanGrind Synthetic Coolant
