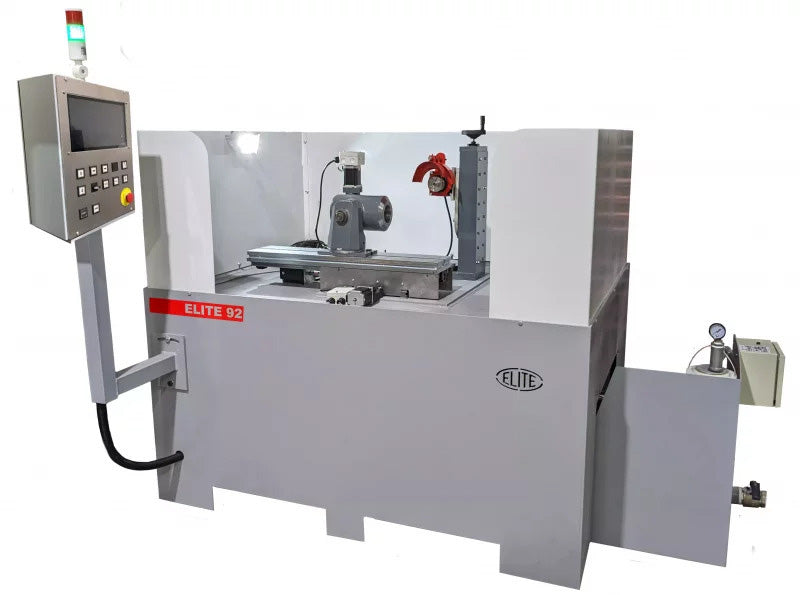

Elite Model 92 CNC - Tool Sharpening w/ 4 CNC Axes
4-axis CNC universal tool and cutter sharpening machine
Description / Informational PDF
The Elite Model 92 CNC is a 4-axis universal tool and cutter sharpening machine engineered for precision grinding of woodworking cutting tools such as milling cutters, drill bits, profiled blades, spinning top heads, and more. Featuring a direct-drive 1.5 HP grinding motor with adjustable speeds from 3,000 to 9,000 RPM, the Model 92 CNC delivers smooth, accurate sharpening across a wide range of tool geometries. Built with Hiwin linear rails, ball screws, and a full cabin enclosure for enhanced safety, this versatile grinder offers user-friendly CNC control through an intuitive LCD touchscreen interface. Ideal for tool rooms, sharpening shops, and production environments seeking consistent, high-quality results.
Highlights
Direct-drive electro-spindle with standard frequency variator (3,000–9,000 RPM; optional up to 18,000 RPM)
Supports 150mm and 200mm diameter grinding wheels
Precision X and Y axis movement on dovetail guides
Z axis movement on recirculating ball bearing guides
User-friendly CNC control via LCD touchscreen
Robust mechanical design for long service life
Manually activated central lubrication system for easy maintenance
Options / Accessories
CNC spiral software package for helical tools – for sharpening helical tools from 0° to 90°
Measuring probe system for measuring the helix angle
Full enclosure of the machine
SK 50 dividing head
Machine-integrated FILTRAmaq UNO fine filtration system for cleaning the grinding oil/emulsion down to 2 micron
Conversion for oil grinding (mist extraction and fire suppression system)
HMT CleanGrind Synthetic Coolant
