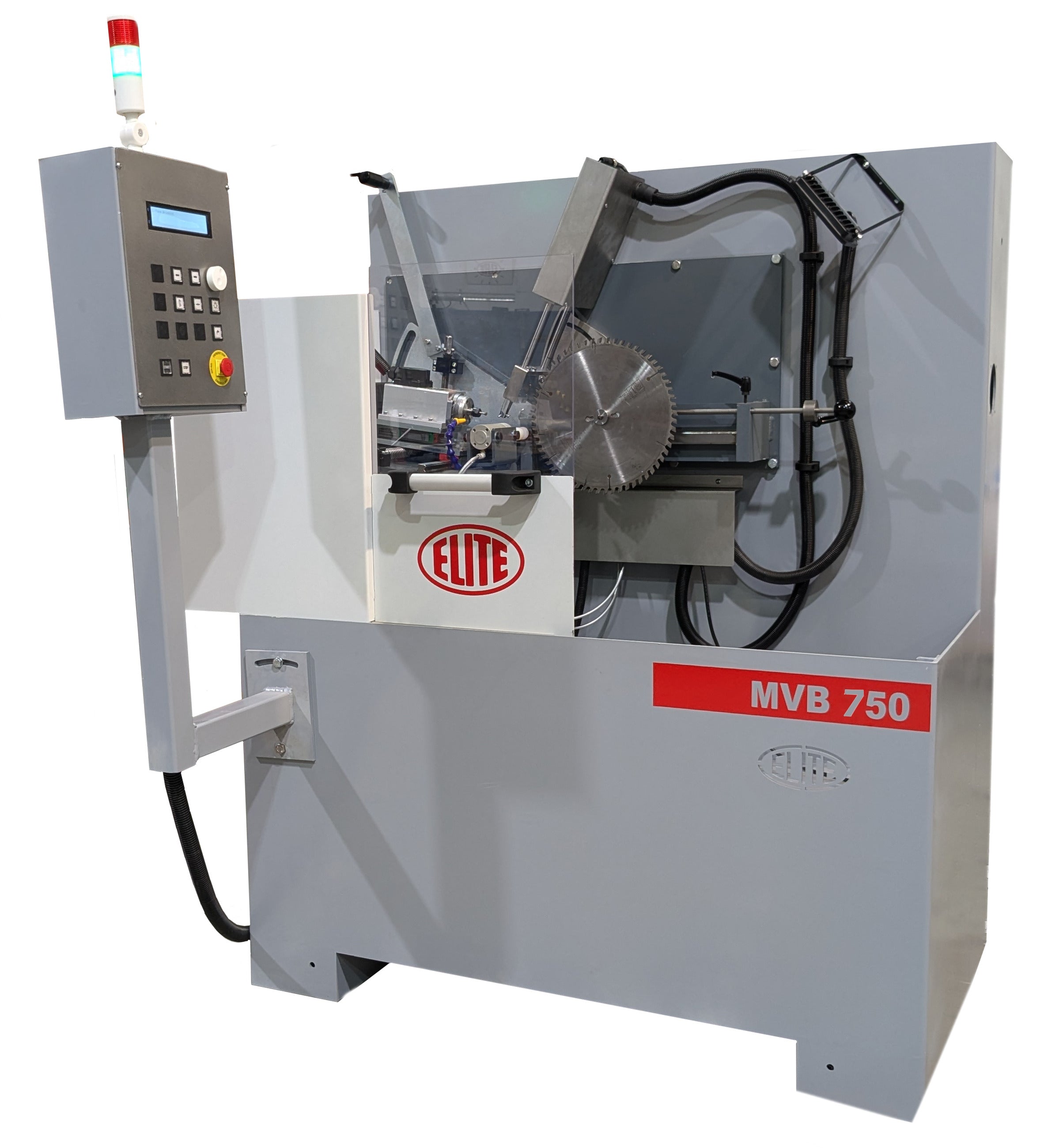

Elite MVB 750 - Top & Face Grinding w/ Half Enclosure
4-axis CNC fully automatic top and face grinding machine for TCT saw blades with 100-850mm diameter
Description / Informational PDF
The Elite MVB 750 is a fully automatic 4-axis CNC top and face grinding machine designed for precision sharpening of circular saw blades. Built for versatility and reliability, the MVB 750 handles both straight face grinding and steel relieving with ease. Featuring a 10” touchscreen control panel, adjustable grinding wheel speeds, and a wide diameter range from 100mm to 850mm, this machine provides exceptional flexibility for industrial blade maintenance and production. Whether you're matching saw diameters or refining tooth geometry, the MVB 750 delivers consistent, high-quality results backed by Elite's proven engineering.
Highlights
Automatic 4-axis CNC operation (X, C, Z, B) for grinding load, feed, stroke, and tooth angle adjustments
Supports saw blade diameters from 100mm to 850mm and body thicknesses up to 8mm (.315”)
10” touchscreen interface for easy saw and grinding data management
Grinding capabilities include face angles from 0° to 25° and top clearance angles from 5° to 25°
Adjustable grinding wheel speeds between 2,500 and 5,000 RPM for optimal performance
Equipped with matched diameter grinding device, LED work light, and various centering ring options
Grinding wheel diameters: 150mm for top grinding, 175mm for face grinding
Options / Accessories
Machine-integrated FILTRAmaq UNO fine filtration system for cleaning the grinding oil/emulsion down to 2 micron
HMT CleanGrind Synthetic Coolant
