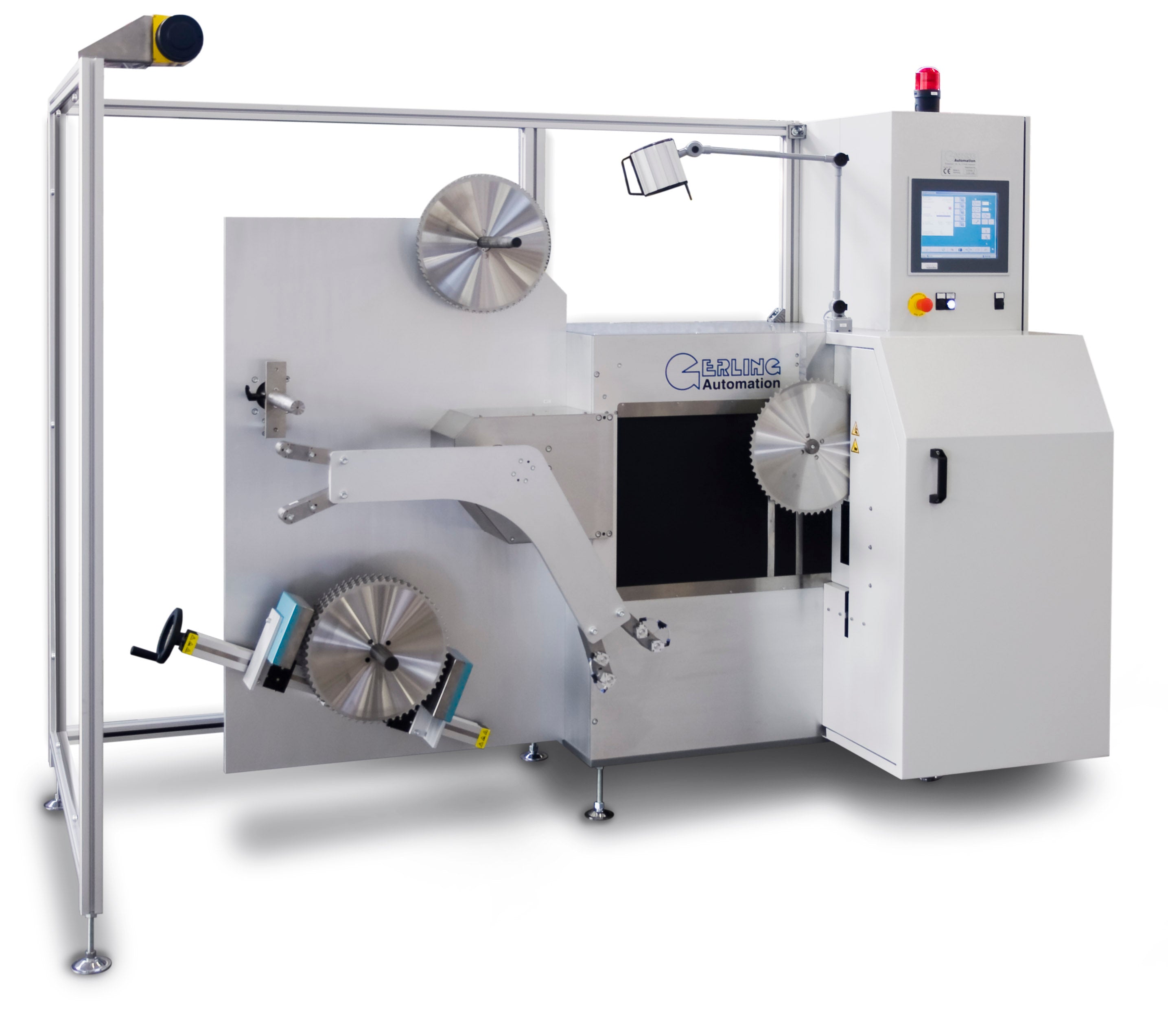

Gerling GQS - Automatic Quality Control
Fully automatic quality control system for TCT saw blades with 160-800mm diameter (up to 2,200mm optionally)
Description / Informational PDF
The Gerling GQS Quality Control System is a fully automated inspection solution designed for carbide-tipped circular saw blades. With 100% quality control at the forefront, the GQS ensures every blade meets exacting standards before it enters production. Utilizing advanced optical measuring technology, the GQS inspects critical factors such as rake angle, tip position, solder seams, and more—all while minimizing operator input and maximizing efficiency. Integrated cleaning, intuitive data programming, and quick-change capabilities make the GQS an essential tool for high-precision saw blade manufacturing operations seeking unmatched accuracy and reliability.
Highlights
100% inspection of carbide tips for brazed and ground circular saw blades
Automatic saw blade cleaning and optical measuring via industrial PC touchscreen
Fast changeover with minimal parts and simple data input for different blade setups
Multi-angle camera inspection of rake angle, tip position, tip orientation, solder seams, and more
Built-in tolerance settings and automatic marking of faulty checkpoints
Automatic sorting of inspected blades into “good” or “faulty” categories
Supports saw blades from 160 mm up to 2200 mm diameter with optional configurations
Options / Accessories
Robot system
Remote maintenance
Marking system
