Gerling GQSE - Semi-Auto Quality Control
Semi-automatic quality control system for TCT saw blades with 160-800mm diameter
Description / Informational PDF

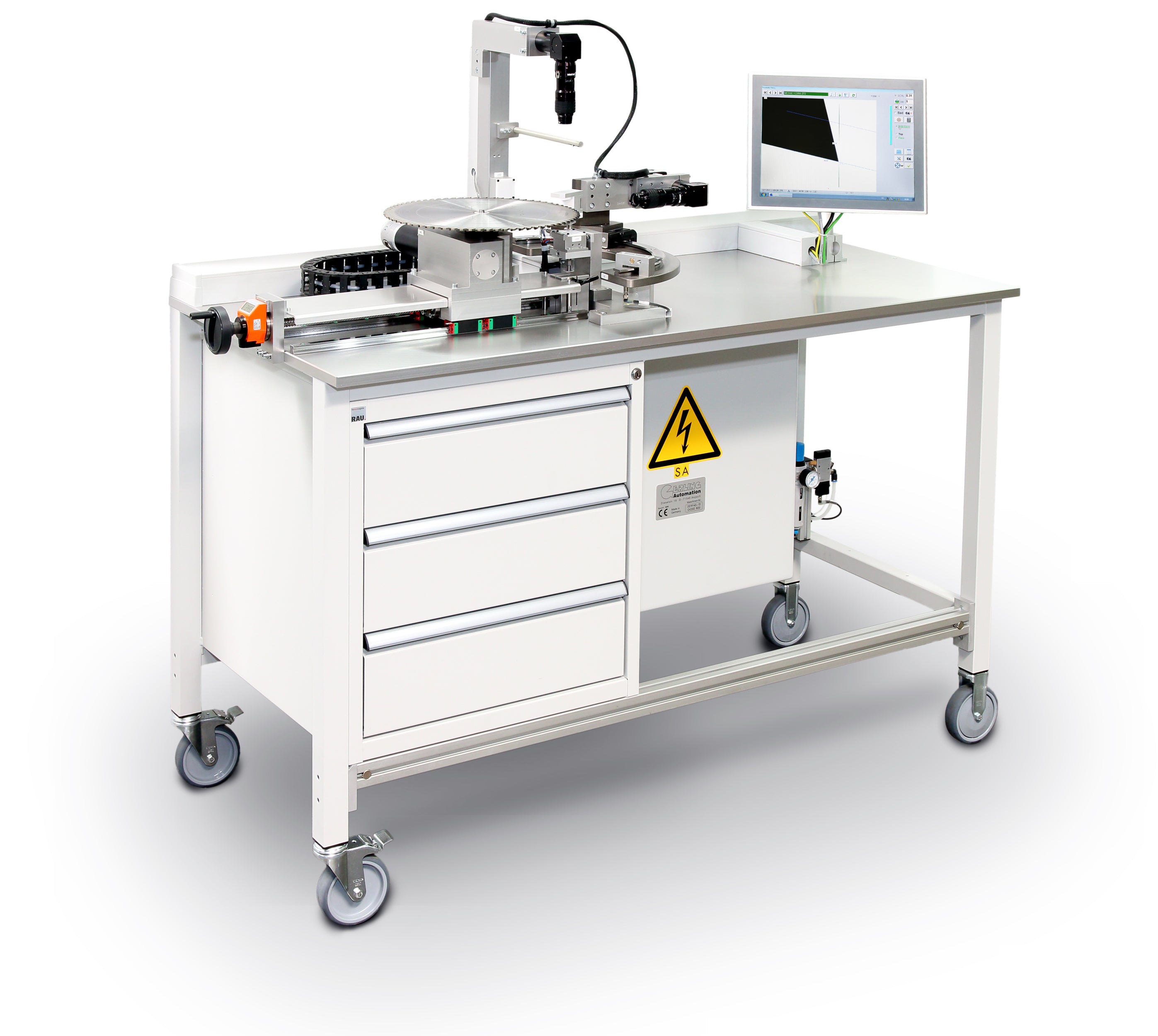

The Gerling GQSE is a semi-automatic quality control system designed to ensure 100% inspection of carbide tips on circular saw blades. Using an advanced optical measuring system, the GQSE checks both brazed and ground blades with exceptional precision. Operators manually position the saw blade, which then rotates while an integrated camera inspects each tip according to programmed tolerances. Inspection data is graphically displayed and can be stored for future reference via an industrial PC running on a Windows-based control system. With fast setup, minimal changeover parts, and database-driven programming, the GQSE streamlines the quality assurance process for manufacturers demanding consistent performance.
Highlights
100% optical inspection of carbide-tipped saw blades
Fast setup with minimal interchange parts
Industrial PC with touchscreen control and modern Windows technology
Saves inspection programs for repeatable, efficient workflows
Graphic display of inspection results for clear analysis
Supports saw blade diameters from 160–800 mm, tip widths from 1.5–6 mm, and tip lengths from 3.5–13 mm
Options / Accessories
Motor driven saw blade holder
Industrial PC with touch panel
Additional camera
Remote maintenance
