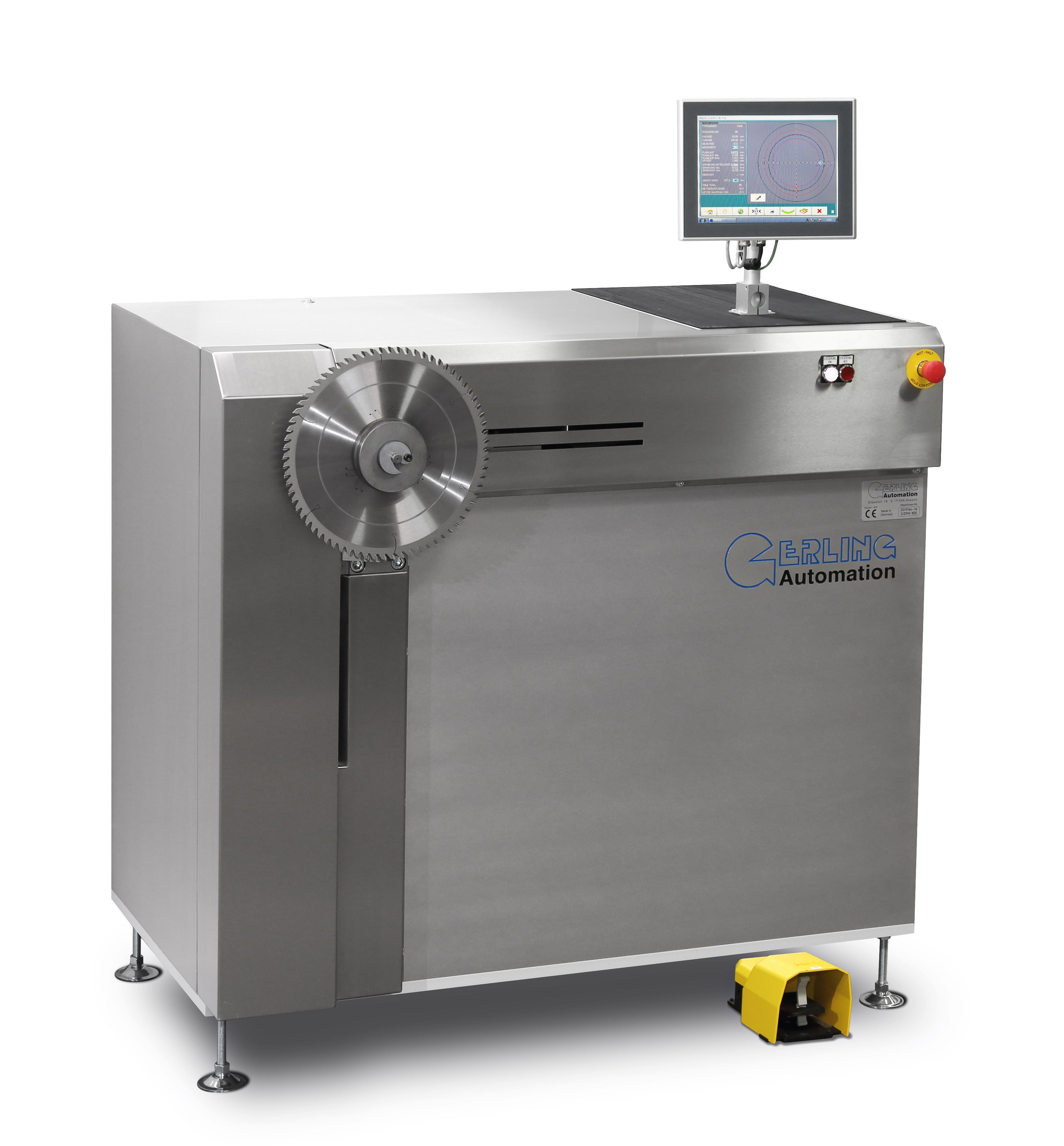

Gerling GSPM - Automatic Tension Measuring
Semi-automatic tension measuring machine for circular saw blades with 180-900mm diameter
Description / Informational PDF
The Gerling GSPM is an advanced tension measuring machine designed for precise evaluation of saw blade tension, axial run-out, and flatness. Featuring a high-precision spindle and a user-friendly industrial PC with touchscreen operation, the GSPM ensures reliable and accurate results with minimal setup time. The machine records tension measurements while the blade rotates and presents the data graphically on a Windows-based interface. Built for easy operation, fast blade changeovers, and low maintenance requirements, the GSPM is an essential tool for quality control in circular saw blade production and servicing.
Highlights
Measures axial run-out, blade tension, and saw body flatness
Fast and accurate changeover for different saw blade sizes (Ø180–900 mm standard; up to Ø1300 mm special)
Intuitive Windows-based touchscreen interface with graphical data display
Pneumatic clamping for secure blade holding during measurement
Adjustable precision laser sensor and tensioning roll for optimal accuracy
Compact footprint (1300x900x1800 mm) with easy maintenance and short training time
Data storage and printing capabilities for documentation and traceability
Options / Accessories
Automatic adjustment for the measuring sensor and tensioning roll by electrical motor
Special design on request
