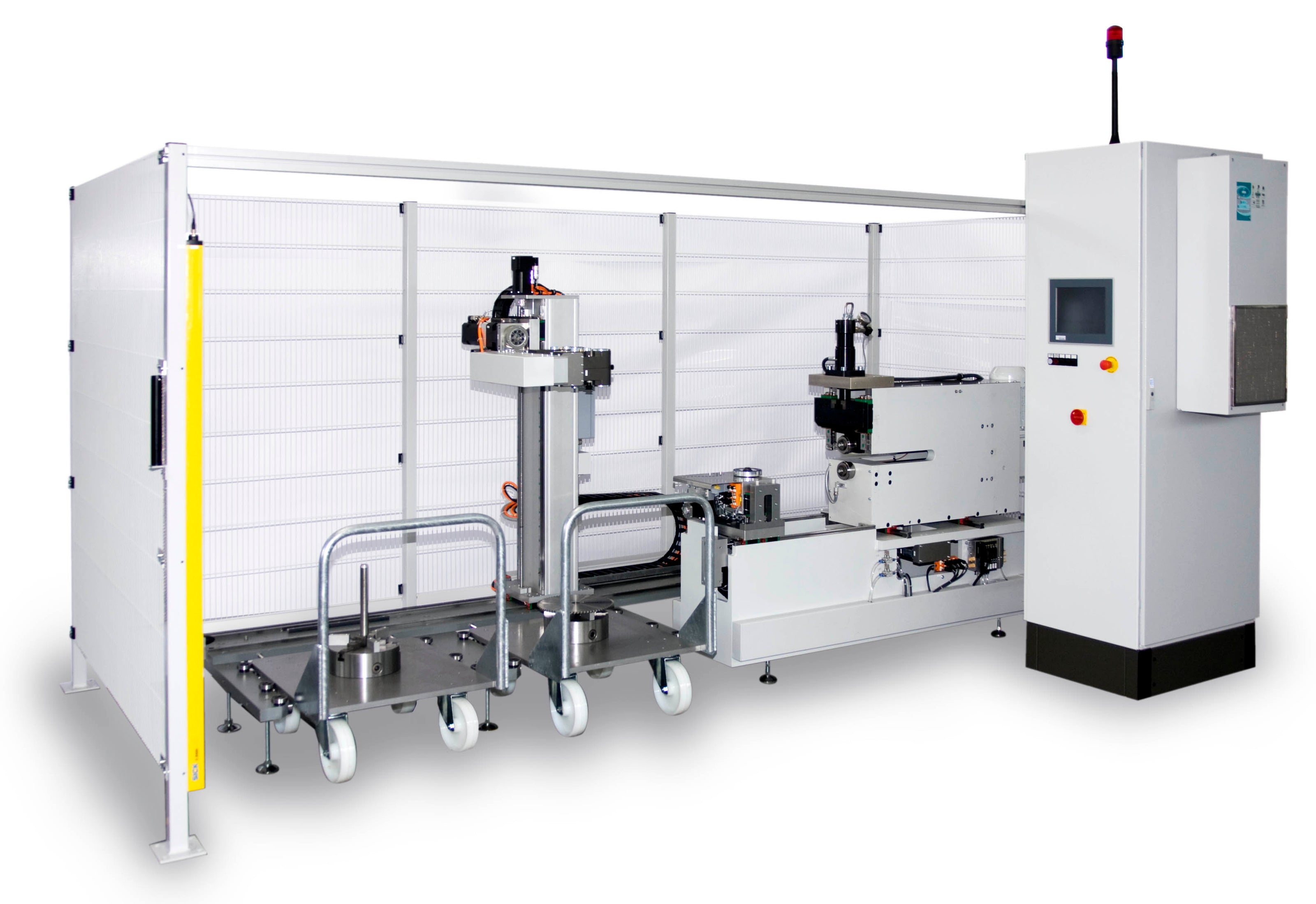

Gerling GSPW - Automatic Tension Rolling
Fully automatic tension rolling machine for TCT saw blades with 120-800mm diameter
Description / Informational PDF
The Gerling GSPW is a fully automatic tension rolling machine engineered to deliver precise, repeatable tensioning of circular saw bodies. Designed for maximum efficiency and ease of use, the GSPW retrieves base bodies via a magnetic gripper and accurately positions them for tension rolling with two driven rollers. The machine can create several tensioning rings at different pitch circles, all with programmable pressure settings for tailored performance. Controlled by an industrial PC with a user-friendly touchscreen and Windows interface, the GSPW offers short training times, fast changeovers between blade sizes, and reliable operation. Built with operator safety in mind, it also features an integrated machine protection system with a light curtain.
Highlights
Fully automatic tensioning of saw bodies (120 – 800 mm diameter)
Electronic adjustment of rolling pressure up to 50 kN
Capability for multiple tensioning rings on different pitch circles
Fast and accurate changeover between saw blade sizes
Easy-to-use touchscreen interface with Windows-based controls
Industrial-grade safety with machine protection system and light curtain
Dual magazine carts for continuous operation and minimized downtime
Minimal maintenance requirements and short operator training period
Options / Accessories
Automatic tensioning of strobe saw bodies
Special design on request
