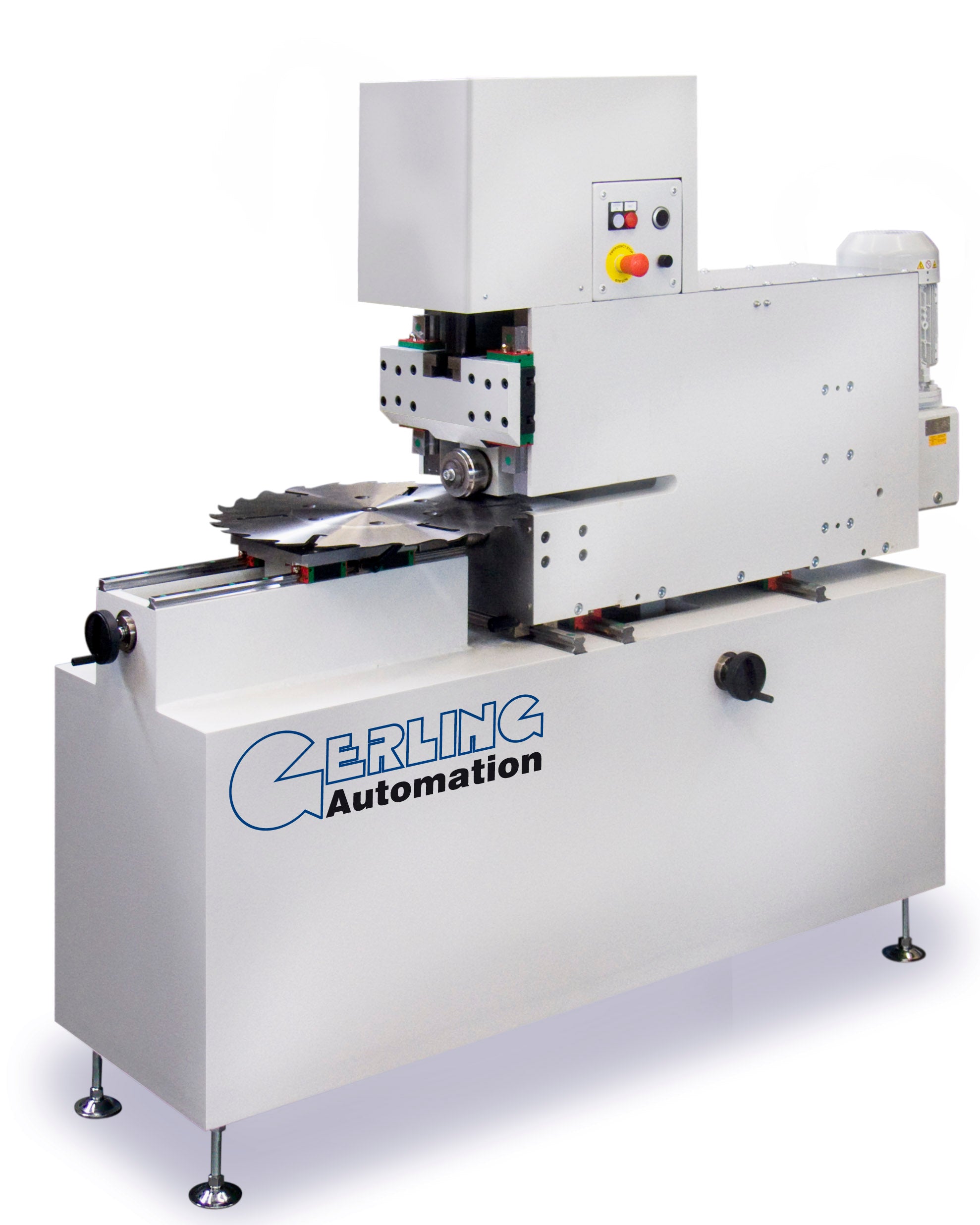

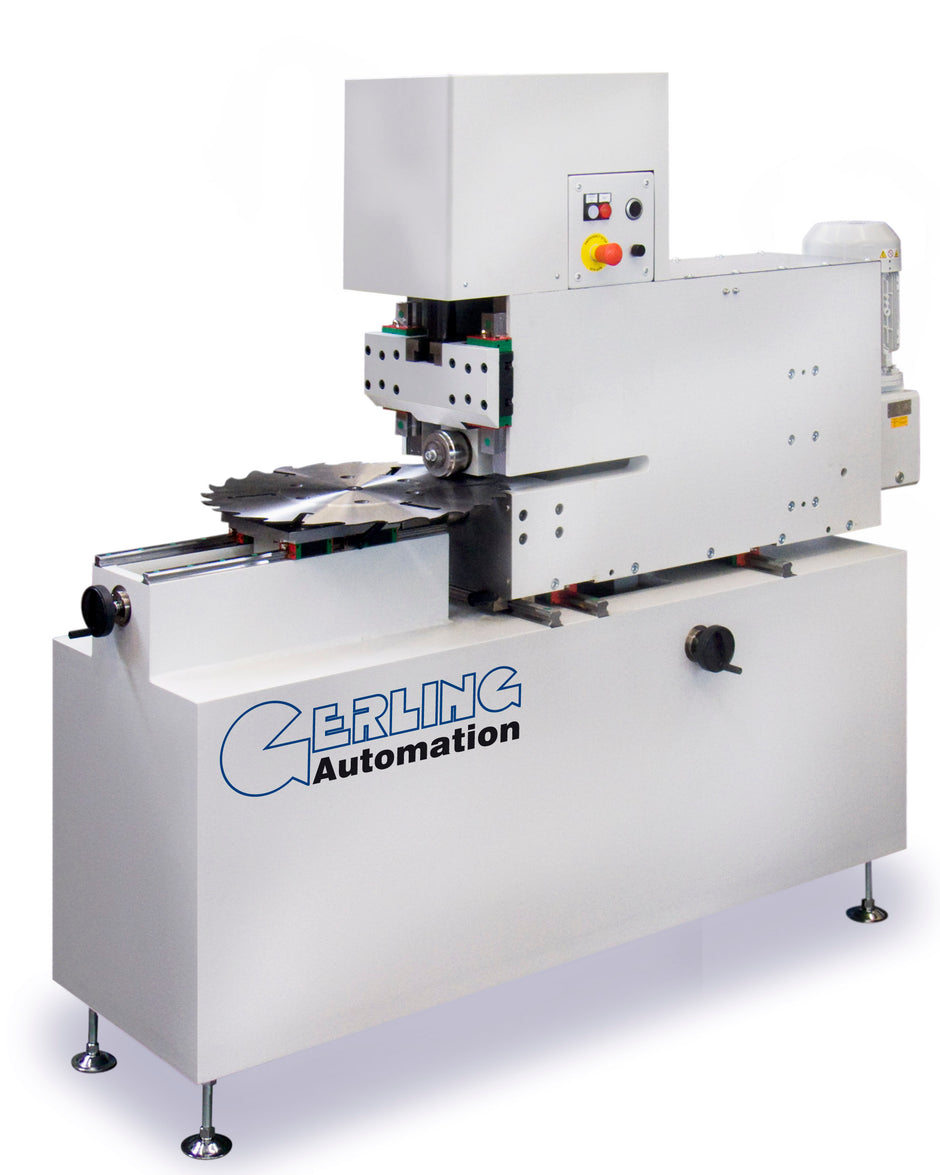

Gerling GSPWH - Manual Tension Rolling
Manual tension rolling machine for TCT saw blades with 120-800mm diameter (up to 1,300mm optionally)
Description / Informational PDF
The Gerling GSPWH is a manually operated tension rolling machine designed for precise and consistent tensioning of circular saw blade bodies. Ideal for saw blade manufacturing and servicing operations, the GSPWH allows operators to easily adjust the tension ring diameter using a handwheel while ensuring controlled rolling pressure through an electronic adjustment system. The base body is positioned manually on the tool holding plate, and the tensioning process is activated by a foot pedal for maximum operator control. With a simple, intuitive design, the GSPWH delivers consistent tensioning results across a wide range of saw blade sizes, supporting diameters from 120 mm up to 800 mm (or 1300 mm with optional equipment).
Highlights
Manually operated tensioning system for base bodies
Adjustable tension ring diameter via handwheel
Electronic control of rolling pressure for precise results
Easy and fast change-over between different saw blade sizes
Simple operation with short training requirements
Durable construction with easy maintenance access
Tension process activated by foot pedal for hands-free efficiency
Rolling force up to 50 kN
Options / Accessories
Tension measuring device
Automatic tensioning of strobe saw blades
Operating interface for parameter input and process display
