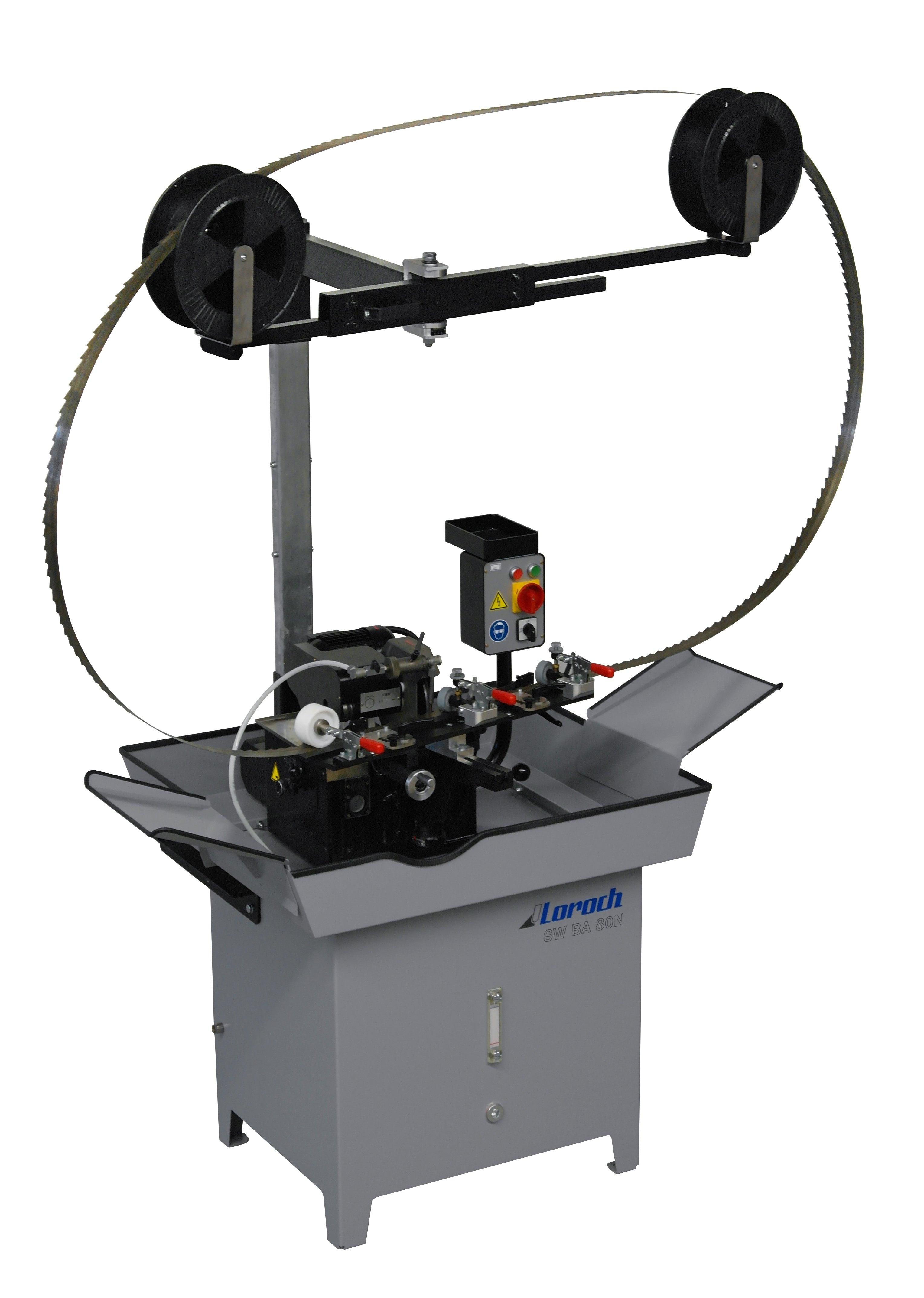

Loroch SW BA 80N - CNC Band Saw Grinding
Electro-mechanical controlled sharpening machine for CV- and bi-metal band saw blades with consistent tooth pitch
Description / Informational PDF
The Loroch SW BA 80N is a precision electro-mechanical sharpening machine designed for CV- and bi-metal band saw blades. Using a cam-controlled system, it consistently produces accurate tooth profiles with either straight back, round back, or pointed teeth. Equipped with a water cooling system and a high-performance CBN grinding wheel, the SW BA 80N allows for deep in-feed grinding while minimizing heat buildup. The machine's adjustable rake angle, integrated dial gauge for blade thickness, and infinitely variable feed speed ensure easy operation and exceptional sharpening quality across a range of blade widths from 10 mm to 80 mm.
Highlights
Deep in-feed grinding with durable CBN grinding wheel
Integrated water cooling system for reduced thermal impact
Sharpens band saw blades from 10 mm to 80 mm in width
Easy face angle adjustment via blade holder swing mechanism
Double feed pawl to bridge missing or broken teeth
Simple cam-driven operation with quick tooth profile selection
Dial gauge for precise blade thickness adjustment
Adjustable feed speed with frequency converter
Options / Accessories
Double feed pawl
Cam sets for different tooth shapes
Custom tooth profile levers
Feed speed control upgrades
